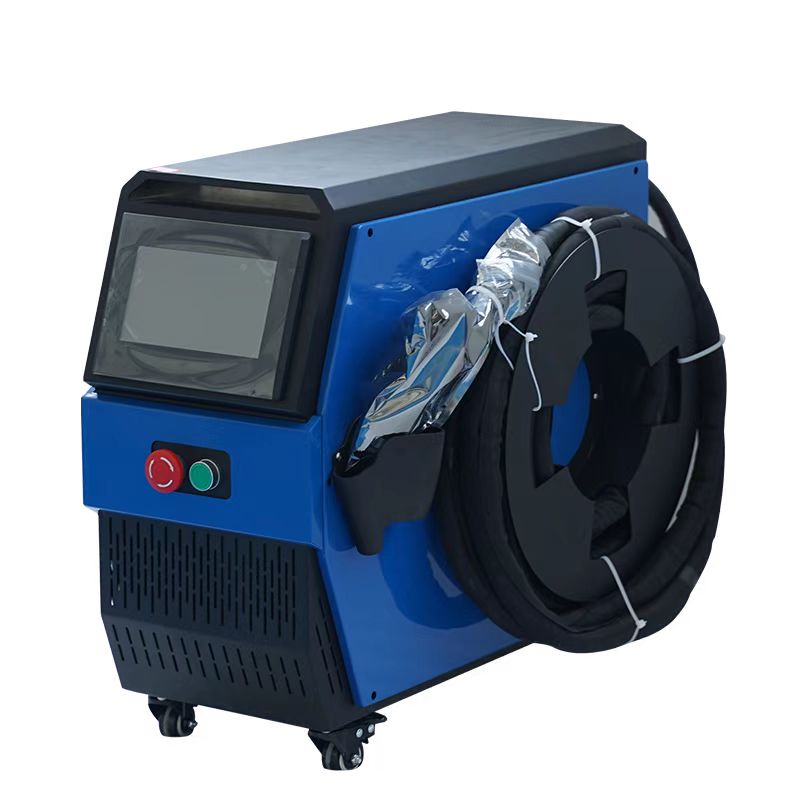

Laser Welding Machine

Short Description:

1.Easily leaning: Everyone who has no any welding experience can lean how to weld fast and easily.

2.Fast switching :One machine with multiple functions and only change simple parts.

3.Portable Welding:One machine can do all the welding work, saving space and cost.

4.Maximum security:Safer and more environmentally friendly.

5.Simple and easy to operate, with no deformation of the weld seam: Stable laser output ensures consistent welding.

6.Equipped with multiple safety alarms, automatic locking of moving parts, and high safety.

7.High power density after laser focusing: Fast speed, deep penetration, and minimal deformation.

8.Compared to traditional welding equipment, the welding is smooth, with no spatter, aesthetically pleasing, fast, and requires no consumables. There are no welding marks or discoloration, and no post-welding polishing is needed.

Send email to us Download To PDF

Detail

Specifications
Equipment name	Handheld laser welding machine
Laser Power	1500w/2000W/3000W
Power source	220v
Laser wavelength	1080±5nm
Fiber core diameter	50μm
Optical fiber length	standard 10 meters
Working mode	Continuous/modulation
Galvanometer width	0-5mm
Galvanometer scanning speed	≤8000mm/s
Welding speed	0-120mm/s
Refrigeration device	Intelligent dual-temperature chiller
Working environment temperature range	15-35℃
Working environment humidity range	<70% without condensation
Welding material thickness	≤4.5mm
Welding gap requirement	≤ 1mm
Working voltage	220V± 10%
Machine power	≤7KW
Machine size	1200mm620mm1050mm

Product Description:

1.The laser welding machine adopts 1000 watt fiber laser, which has high photoelectric conversion efficiency and long life of 100, 000 hours. The energy provided by electric energy is 25%-30% converted into laser energy, and the photoelectric conversion rate is many times than that of YAG laser.

2. The energy density is high, the heat input is low, the amount of thermal deformation is small, and the melting zone and the heat-affected zone are narrow and deep.

3. High cooling rate, which can weld fine weld structure and good joint performance.

4. Compared with contact welding, laser welding eliminates the need for electrodes, reducing daily maintenance costs and greatly increasing work efficiency.

5. The weld seam is thin, the penetration depth is large, the taper is small, the precision is high, the appearance is smooth, flat and beautiful.

6. No consumables, small size, flexible processing, low operating and maintenance costs.

7. The laser is transmitted through fiber optics and can be used in conjunction with a pipeline or robot.

Application of mini fiber laser marking machine

It is widely used in the automotive, machinery manufacturing, medical equipment, shipbuilding, chemical industry, aerospace, aviation, power battery and daily necessities industries.

It is suit for gold, silver, titanium, nickel, tin, copper, aluminum and the alloys. It can implement precision between the same metals and dissimilar metals. It has been widely used in aerospace equipments, shipbuilding, instruments, mechanical and electrical products, automobile manufacturing and other industries.
