| Specifications | |
| Model | CO2 laser marking machine |
| Laser Power | 20W-100W |
| Laser Wavelength | 1064nm |
| Q-frequency | 20KHZ-100KHZ |
| PMW | 0-20 Adjustable |
| Divergence | 0.3mard |
| Marking Range | 110*110mm/150*150mm/175*175mm/200*200mm/300*300mm(optional) |
| Minimum Character | 0.5mm |
| Minimum Line Width | 0.01mm |
| Minimum Depth | 0-1mm(Depending on the materials) |
| Engraving Line Speed | ≤7000mm/s |
| Scope of Marking | All metals and some non-metals (such as hard plastics) |
| Consumables | No consumables |
| Marking thickness | depends on different materials and is related to the hardness of the materials |
| Laser head and service life | Theoretical lifespan 100000 hours |
| Warranty period | One year warranty for the entire machine, two years warranty for the laser |
| Working Size | default 110 * 100mm, can be selected according to needs |
| Repeatability Accuracy | ±0.001mm |
| Beam Quality | M2:1.2-1.8 |
| Marking Format | Graphics,text,bar codes,two-dimension code,automatically marking the date, batch number,serial number, frequency,etc |
| Graphic Format Supported | BMP,JPG,GIF,PNG,TIF,AI,DXF,DST,PLT,etc. |
| Working Voltage | 220V/50HZ/4A |
| Unit Power | <0.5kw |
| Working Environment Required | Clean and dust free or dust less |
| Working Condition | humidity 5%-95%,Free of condensed water |
| Laser Module Life | Around 100000 hours |
| Laser Source | MAX/RAYCUS/JPT |
| Control Card | JCZ Brand EZCAD |
Product Description:
1. It can process various metal and non-metal materials. Especially suitable for high hardness, high melting point and brittleness.The advantages of material marking are more obvious.
2. It belongs to non-contact processing, no damage to the product, no tool wear, and good marking quality.
3. The laser beam is thin, the processing material consumption is small, and the processing heat-affected area is small.
4. High processing efficiency, computer control, easy to realize automation
5. Engraving of various metals and some non-metals metal alloy materials, plastics, rubber, leather and other materials. Satisfy high-speed production requirements such as automotive, electronics, and medical processing.Engravable patterns, text, Dat Matrix QR code, serial number, counters, dates, shifts, variables, etc.
Application:
Wide range of applications: It can be easily integrated into the production line or work independently; Fit in Marking, carving and cutting on most non-metallic materials; Flexible and convenient operating system: humanized operation process and good stability of equipment operation; The special control software is compatible with AutoCAD, CorelDRAW, Photoshop and other software outputs. It can automatically arrange and modify text symbols, graphic images, bar codes, QR codes, serial numbers, etc. Support PLT, PCX, DXF, BMP, JPG and other file formats, can use TTF word library directly; Outstanding product cost performance: Using RF laser, good beam performance, long service life, stable performance and maintenance-free; The service is convenient and quick, so you have no worries after using it. Simple humanized design, saving high training cost; The comprehensive performance of the equipment is stable, and it has the ability to work continuously for 24 hours.
CO2 laser marker can mark a variety of non-metallic materials and some metal products, such as bamboo products, wood, acrylic, leather, glass, building ceramics, rubber and so on. It is widely used in pharmaceutical packaging, food packaging, beverage packaging, plastic, textile, leather, wood, handicraft, electronic components, communications, clocks, glasses, printing and other industries. It is suitable for marking, carving, piercing and cutting of various non-metallic materials and products. It can mark, sculpt, pierce and cut various words, symbols, graphics, images, bar codes, serial numbers, etc.

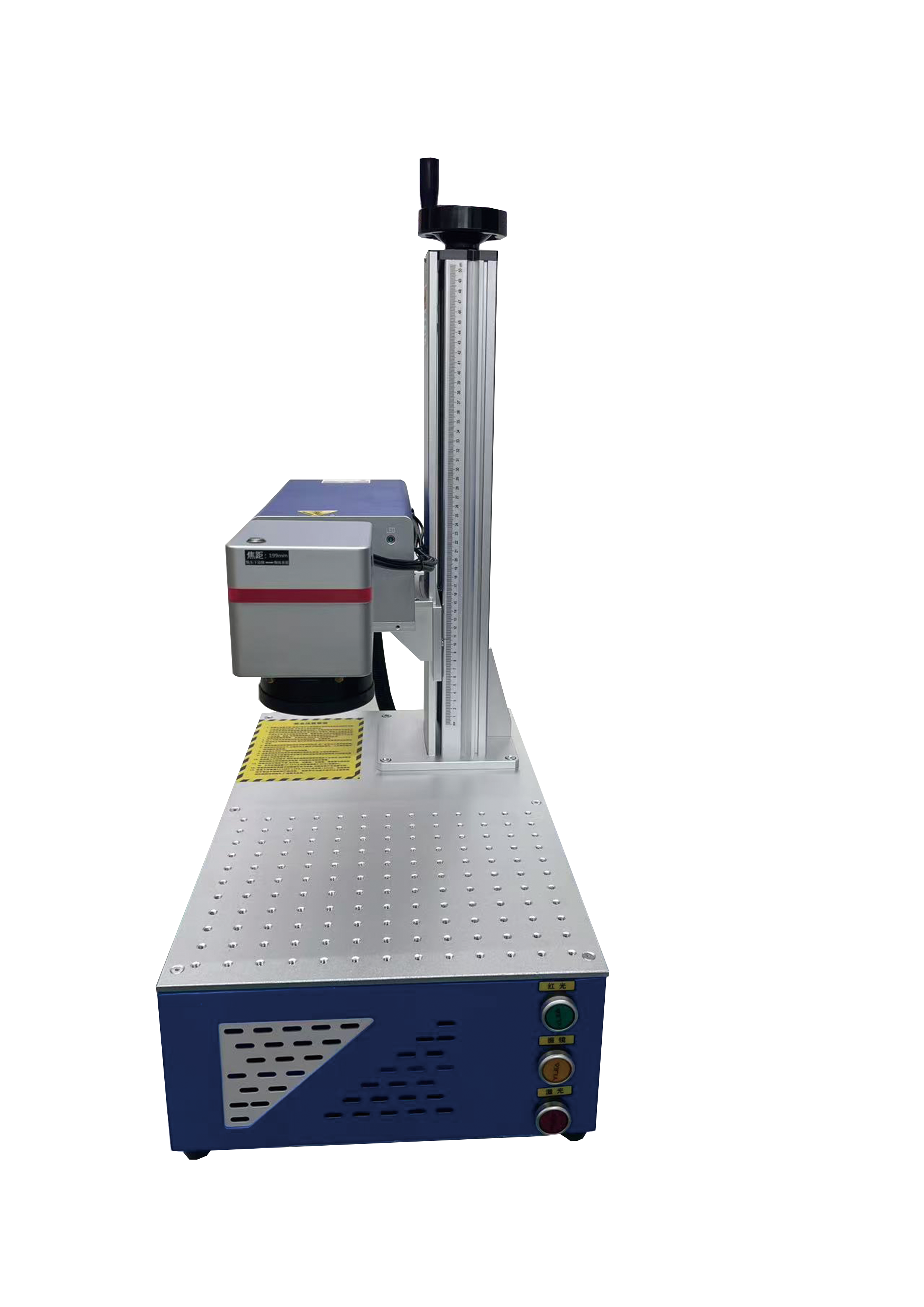

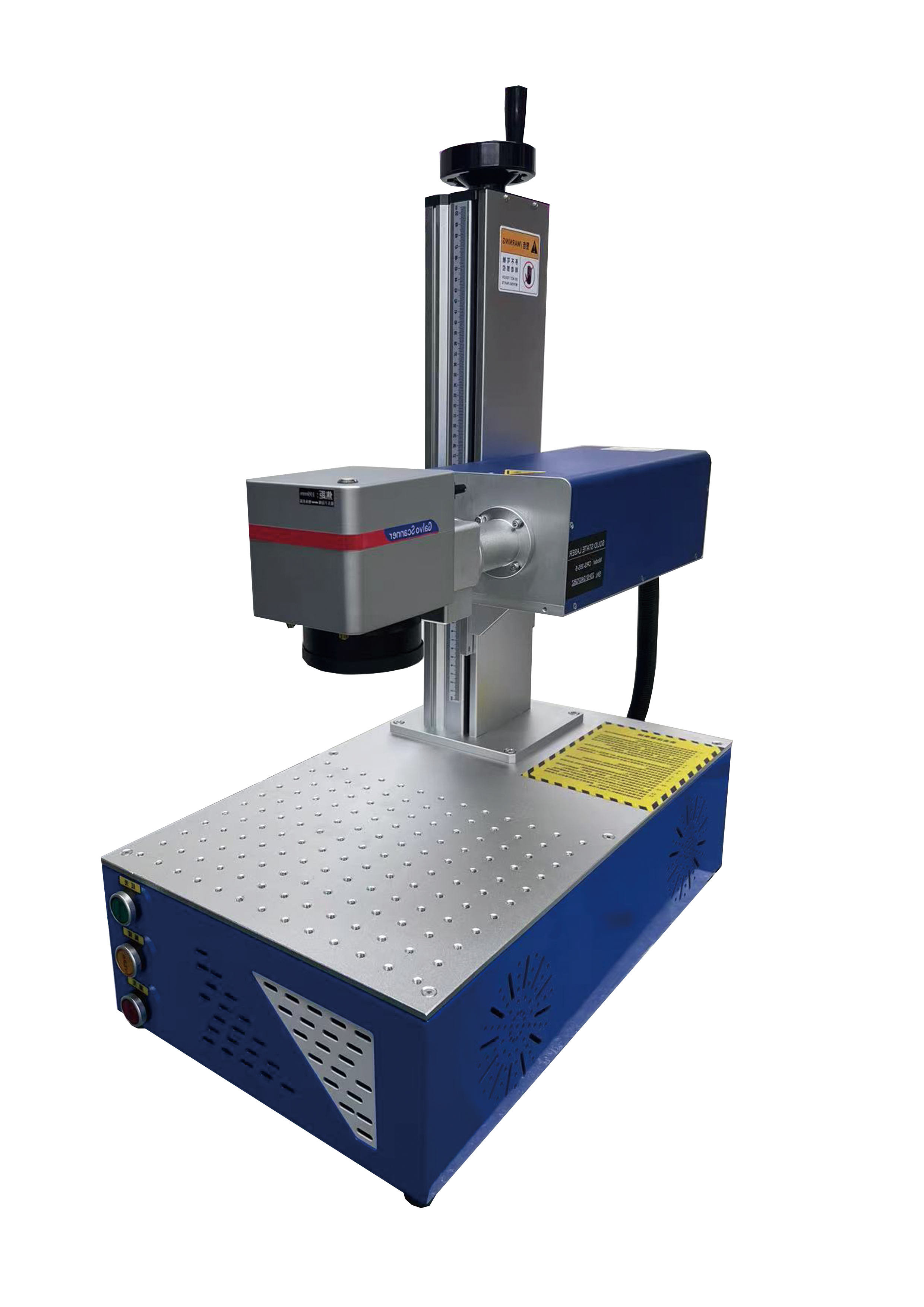

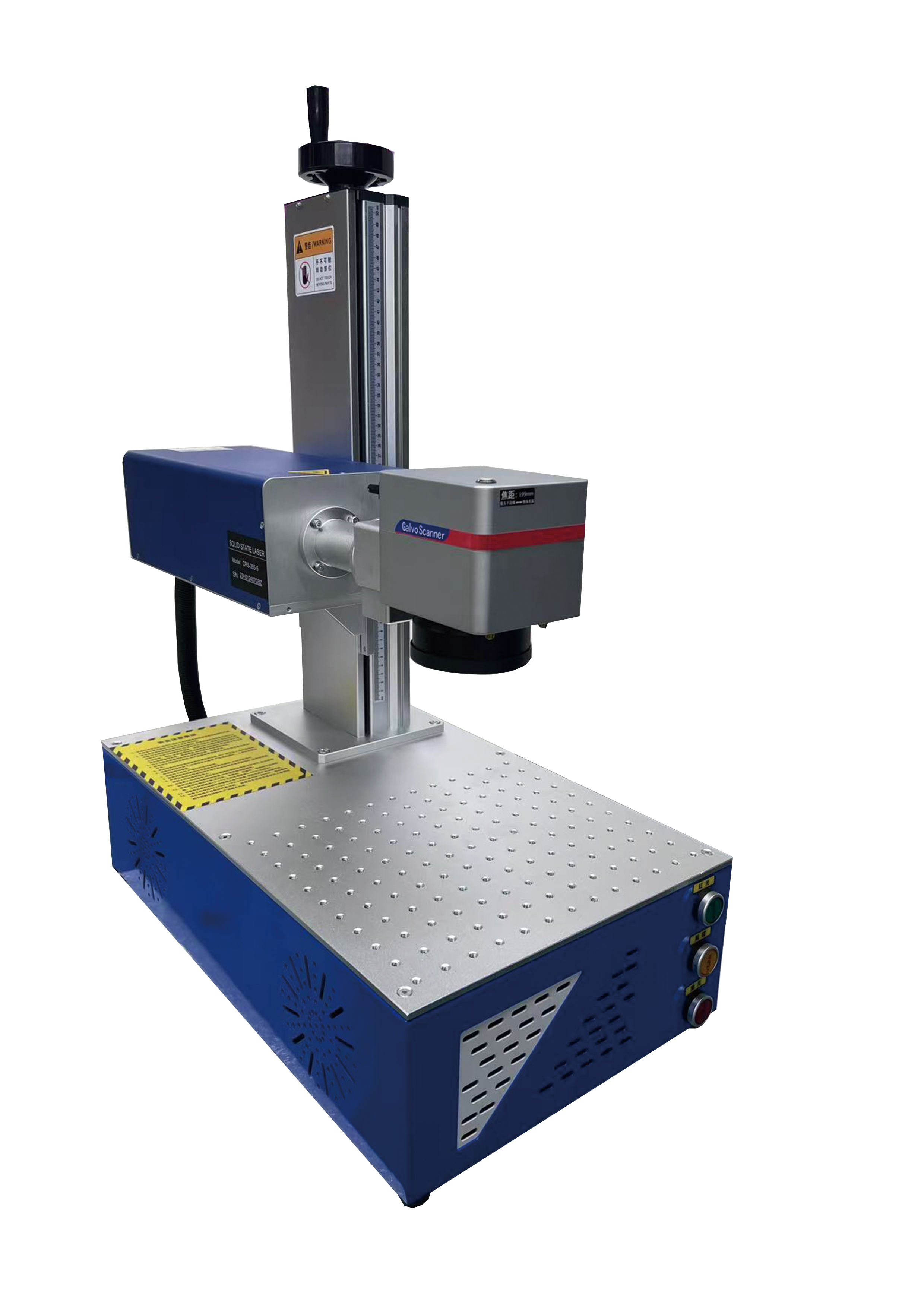

Picture Show:
